2027 Ford Transit Wheelbase Guide: Sizes & Dimensions
The Ford Transit is the best-selling van in the United States, and it’s little wonder why. With unparalleled size, customization, and upfitting options, there truly is a Transit for every type of business, from contractors to delivery services, and even mobile offices. And, because it’s a Ford, you can also count on strong engines and legendary toughness, removing at least one stress point from your workday.
Before purchasing a Ford Transit, however, there are several choices that need to be made, and none are more important than the vehicle’s wheelbase length. The Transit cargo van comes in both a 130-inch and a 148-inch wheelbase, with the 148-inch length also featuring an extended-body version. Which is right for you? The team at Sarchione Ford has put together this guide to help you get started. Let’s dive in.

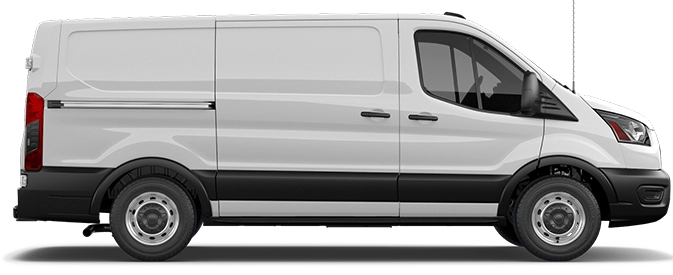

Transit 130-Inch Wheelbase
Roof Availability: Low Roof
130-Inch Advantages:
- More maneuverable in cities and congested job sites
- Shortest overall Transit body
- Low roof eliminates potential clearance issues
- Easier to park and position in loading areas
- Strong starting point for compact trade and service upfits
Looking for a good capacity in a nimble package? The 130-inch wheelbase might be your best bet. Depending on its precise configuration, it can offer in excess of 4,000 pounds of payload capacity over a cargo floor that is 126 inches long, all in a compact body that’s ideal for working in urban areas, or anywhere maneuverability and handling is at a premium.

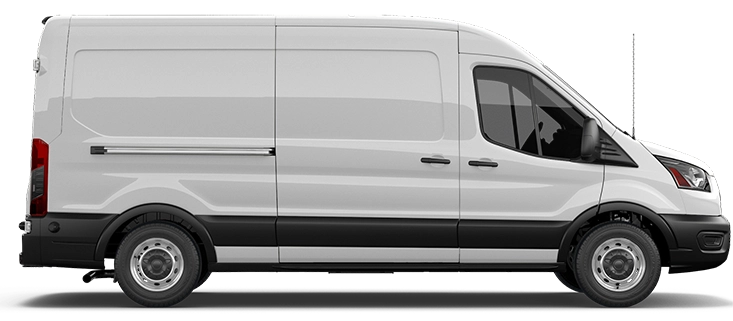

Transit 148-Inch Wheelbase
Roof Availability: Low Roof, Medium Roof, High Roof
148-Inch Advantages:
- Substantially greater cargo-floor length
- Total cargo floor area of nearly 55 square feet between wheel wells
- More space for shelving, bins, racks, and workstations
- Useful balance between capacity and rear overhang
- Strong platform for delivery, trade, fleet, and mobile-business upfits
By far, the 148-inch wheelbase is the most versatile Ford Transit, making it the smart choice for a wide variety of business needs. It’s the only wheelbase length where all three roof heights are available (though not all Transit models include all roof heights). That, along with a host of further customization options, means that the 148-inch wheelbase format can serve needs ranging from light to heavy duty.

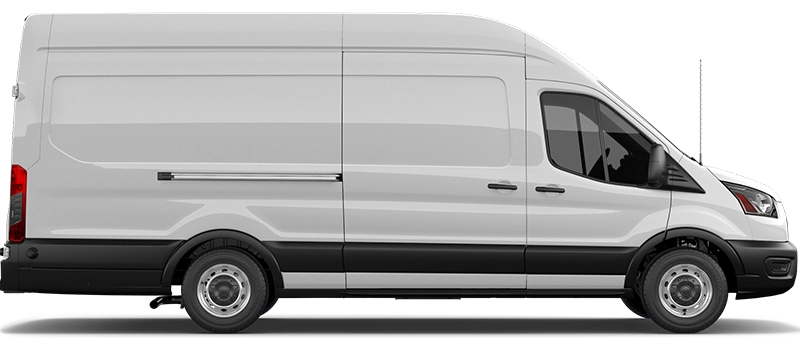

Transit 148-Inch Extended Wheelbase
Roof Availability: High Roof
148-Inch Extended Advantages:
- Maximum Transit cargo van body length
- Up to 487.3 cubic feet of cargo space
- Approximately 172 inches of cargo-floor length
- More room for bulky cargo and advanced conversions
- Maximum flexibility for high-volume and specialty operations
The 148-inch extended wheelbase is the largest body size that the Ford Transit has to offer, ideal for high-volume delivery, furniture and equipment transport, extensive trade upfits, mobile workshops, recreation conversions, luxury upfits, and other applications where every additional inch of interior room matters. To take things even further, the 148-inch extended wheelbase can be equipped with a dual rear wheel, all-wheel drive, and a 3.5L EcoBoost® V6 Engine.
Ford Transit Cargo Dimensions by Wheelbase Length
| 130-Inch Low Roof | 148-Inch Low Roof | 148-Inch Medium Roof | 148-Inch High Roof | 148-Inch Extended High Roof | |
| Cargo Length | 126.0 inches | 143.7 inches | 143.7 inches | 143.7 inches | 172.2 inches |
| Cargo Width | 70.2 inches | 70.2 inches | 70.2 inches | 70.2 inches | 70.2 inches |
| Cargo Height | 56.9 inches | 56.9 inches | 72.0 inches | 81.5 inches | 81.5 inches |
| Cargo Volume | 246.7 cubic feet | 277.7 cubic feet | 357.1 cubic feet | 404.3 cubic feet | 487.3 cubic feet |
| Exterior Length | 219.9 inches | 237.6 inches | 235.5 inches | 235.5 inches | 263.9 inches |
| Exterior Width (including mirrors) | 97.4 inches | 97.4 inches | 97.4 inches | 97.4 inches | 97.4 inches |
| Exterior Height | 82.2 inches | 82.9 inches | 101.3 inches | 109.6 inches | 110.4 inches |
| Turning Diameter | 42.9 feet | 47.8 feet | 47.8 feet | 47.8 feet | 47.8 feet |
Which Transit Wheelbase is Right for You?
130-Inch Wheelbase
Best for: Urban service routes, contractors, mobile technicians, smaller upfits, and buyers who value maneuverability
- 219.9-inch exterior length
- 82.2-inch exterior height
- 42.9-foot turning diameter
- Up to 246.7 cubic feet of cargo volume
- Approximately 126.0 inches of usable cargo-floor length
148-Inch Wheelbase
Best for: Delivery routes, trade upfits, shelving systems, larger equipment, mobile businesses, and mixed urban/highway use
- 235.5-inch exterior length
- 47.8-foot turning diameter
- Available in three roof configurations
- Up to 404.3 cubic feet of cargo volume
- Approximately 143.7 inches of usable cargo-floor length
148-Inch Extended Wheelbase
Best for: Maximum-volume deliveries, long shelving runs, bulky cargo, advanced upfits, conversion projects, and high-capacity operations.
- 263.9-inch exterior length
- 47.8-foot turning diameter
- High-roof configuration
- Up to 487.3 cubic feet of cargo volume
- Approximately 172.2 inches of usable cargo-floor length
Wheelbase Length Considerations

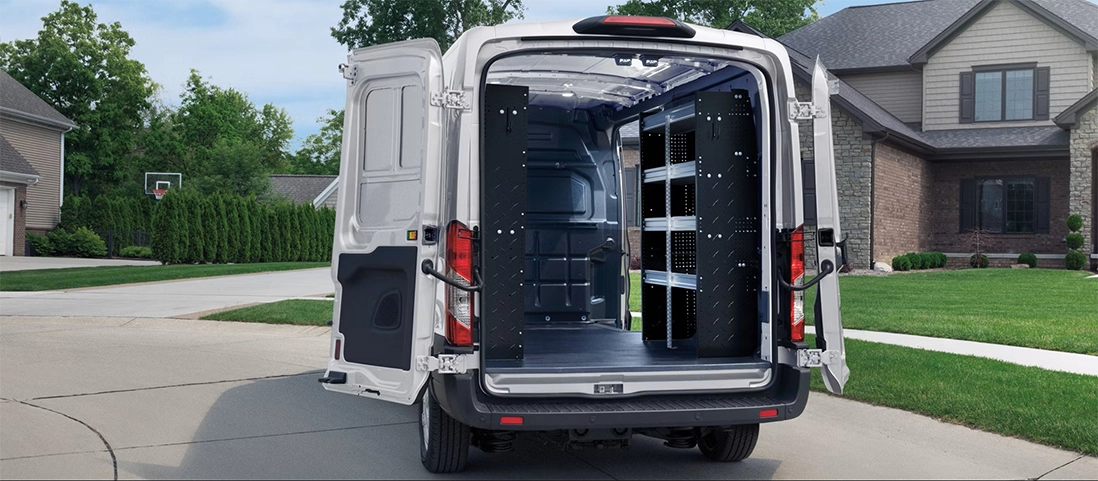

Cargo Length
Obviously, the longer the wheelbase and the longer the body, the more uninterrupted space the van will have for shelving, furniture, boxes, and other cargo needs.
Turning Space
Longer wheelbases require more space to turn, while shorter wheelbases are ideal for maneuverability around tight urban streets, parking lots, and loading areas.
Upfit Potential
Looking to customize your van? The more space that’s available, the more flexibility you’ll have to install things like cabinets, work benches, tanks, or other specialty equipment.
Load Distribution
Getting a longer vehicle doesn’t reduce or eliminate the need to adhere to the various capacity and distribution limits of the Transit’s axles and the vehicle as a whole.
Need More Help Choosing a Transit Configuration?
Our Ford Transit Cargo Van Configuration Guide answers several additional questions, related to things like engine options, cutaway and chassis cabs, and upfitting.
Of course, if all else fails, the expert team at Sarchione Ford is here to help. With decades of experience assisting businesses of all types find the perfect Ford work vehicle, there’s no better way to find the ideal fit for your needs. Contact us today to get started!
